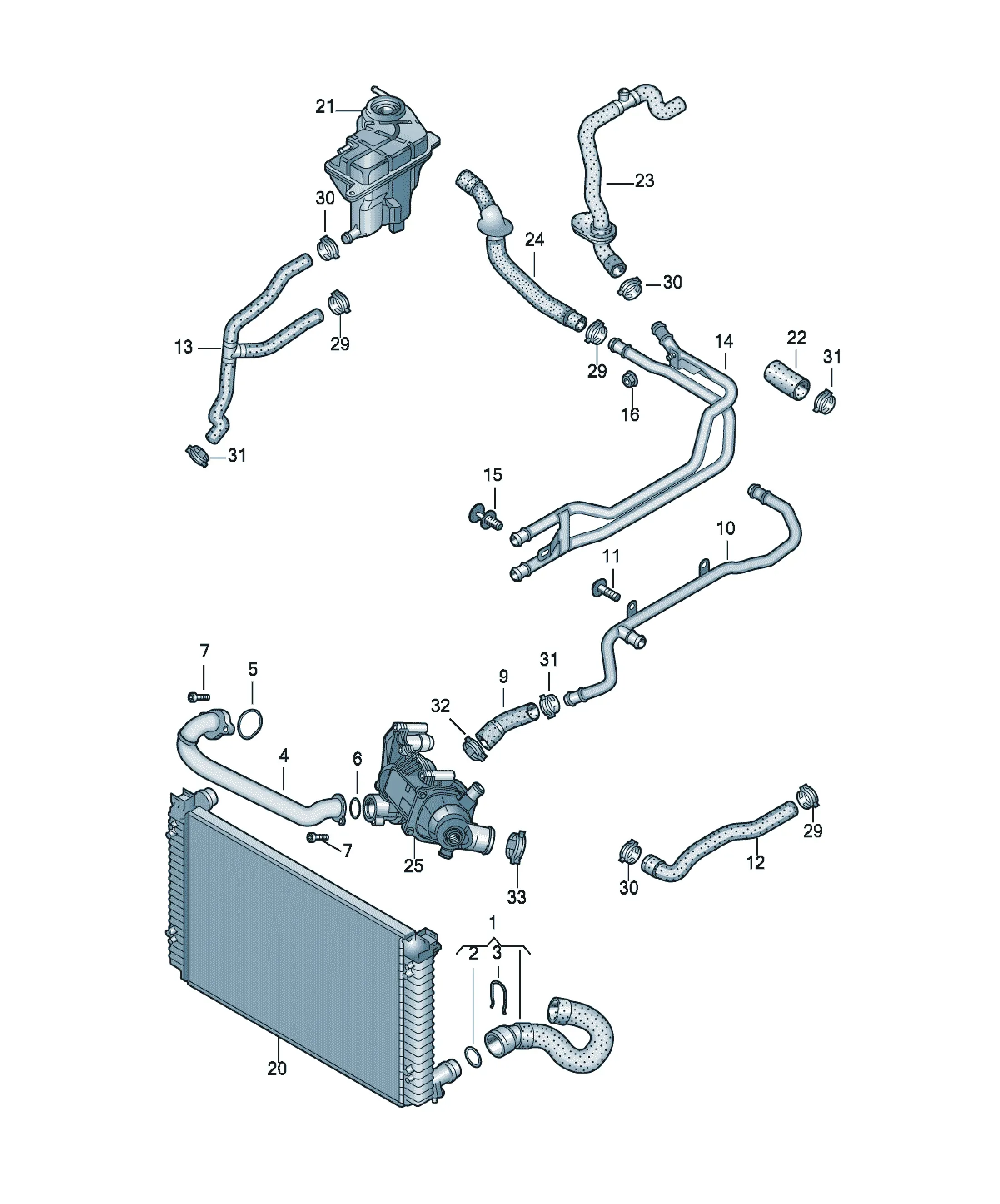

Cooling system

[Name] [Note] [QTY]

seal ring 10X13,5 1

[Name] [Note] [QTY]

sealing plug M10X1X10 1

Alternative installation: N 016 024 3

[Name] [QTY]

Coolant hose with quick release coupling 1

[Name] [Note] [QTY]

Coolant pipe left 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

Replacements: N 90780904

[Name] [QTY]

Coolant hose 1

[Name] [QTY]

Coolant hose

F >> 4F-7-070 000* 1

Replacements: 4F0121036E

[Name] [QTY]

Coolant hose

F 4F-7-070 001* 1

[Name] [QTY]

Coolant pipe 1

[Name]

Satin black

[Name] [QTY]

Clip 1

Replacements: 4B0863907A 01C

[Name] [Note] [QTY]

Hexagon collar nut M6 1

Replacements: N 01508210

[Name] [Note] [QTY]

O-ring 38X4 1

[Name] [Note]

Cooler for coolant

see illustration: 121-072

[Name] [Note]

Reservoir

see illustration: 121-072

[Name] [Note]

Coolant hose

see illustration: 121-054

[Name] [Note]

Coolant hose

see illustration: 819-060

[Name] [Note]

Coolant hose

see illustration: 819-060

[Name] [Note]

Coolant pump

see illustration: 121-009

[Name] [Note] [QTY]

Spring band clamp 23X12 X

[Name] [Note] [QTY]

retaining spring 38MM 1

[Name] [Note] [QTY]

Spring band clamp 27X12 X

[Name] [Note] [QTY]

Spring band clamp 32X12 X

[Name] [Note] [QTY]

Spring band clamp 35X12 X

[Name] [Note] [QTY]

Spring band clamp 47X12 X

[Name] [Note] [QTY]

Coolant pipe front 1

Items supplied

flange 2

Pipe 25X2 1

Threaded bush 1

N 0138115 seal ring 10X13,5 1

N 91119401 sealing plug M10X1X10 1

Alternative installation: N 016 024 3

Potential individual parts

N 91119401 sealing plug M10X1X10 1

or

N 0160243 sealing plug M10X1 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

O-ring 28X4,5 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X18 3

[Name] [QTY]

Coolant hose 1
